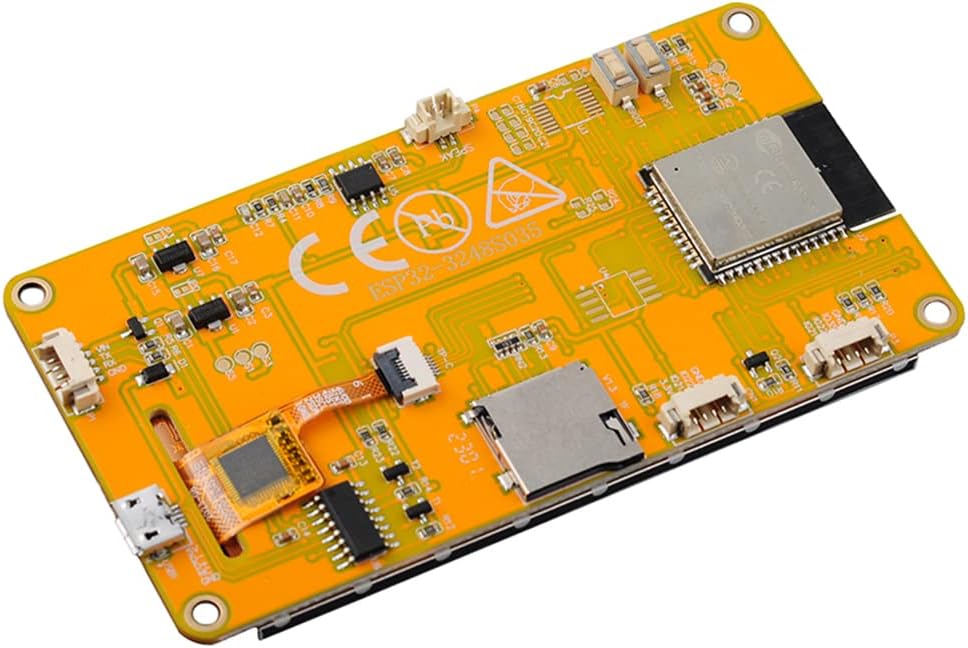

3.5" ESP32 Display Module ESP32-3248S035C WiFi+BT Dual-core MCU 320x480 3.5inch TFT Capacitive Touch Screen ST7796 4MB Flash for IoT Smart Home
Product details
| Management number | 228878212 | Release Date | 2026/05/31 | List Price | US$10.00 | Model Number | 228878212 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description: This LCD module uses ESP32 module as the main control, the maincontrol is a dual-core MCU, integrated Wl-Fl and Blue-tooth functions, the main frequency can reach 240MHz, 520KB SRAM, 448KB ROM, Flash size is 4MB+4MB, The display resolution is 320 x 480,resistive touch. The module includes LCD display screen, backlight control circuit, touch screen control circuit, speaker drive circuit, photo sensitive circuit and RGB-LED control circuit. TF card interface, serial interface, temperature and humidity sensor interface (DHT11 interface) and reserved lO port interface, this module supports development in A rduino IDE, ESP IDE,M icropython and M ixly. Features: - 3.5-inch color screen, support 16 BIT RGB 65K color display, display rich colors - 320 x 480 resolution - The sample program has been programmed in the factory and can be plugged in - With TF card slot for easy expansion storage - Provide arduino-library functions and sample programs to facilitate rapid secondary development - Support one-click download program - Military-grade process standards, long-term stable work Parameters: Display color: RGB 65K color Size: 3.5 inch Type: TFT Driver chip: ST7796 Resolution: 320*480(Pixel) Effective display area: 73.44*48.96(mm) Module size: 101.5*54.9(mm) View: >60° Operating temperature: -20C~70℃ Storage temperature: -30℃~80℃ Operating Voltage: 5V Power consumption: About 120mA Product weight: About 50g Package includes: 1 X ESP32 3.5 inch touchscreen module
- ESP32-3248S035 development board is based on the ESP32-DOWDQ6 controller, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO, SPI, UART and other functions, supports automatic download
- ESP32-32485035 is a real lnternet of Things development tool with a control-lable display screen, which can be used for APP remote control, remote environmental data collection,remote data fusion, remote Parameter settings
- Driver chip: ST7796, 3.5-inch color screen, support 16Bit RGB 65K color display, 320 x 480 resolution
- With TF card slot, Support one-click download program
- Application: Home smart device image transmission, Wireless monitoring, Smart agriculture QR wireless recognition, Wireless positioning system signal, And other IoT applications
| ASIN | B0C5DB6RHM |
|---|---|
| Brand | DIYmall |
| CPU Model | None |
| Manufacturer | DIYmall |
| BuiltIn Media | ESP32-3248S035 Module |
| Processor Brand | Espressif Systems |
| Processor Count | 2 |
| Processor Speed | 2.4E+2 MHz |
| Total Usb Ports | 1 |
| Operating System | FreeRTOS |
| Compatible Devices | Smartphones, Cameras, Sensors, TF Cards, Home Automation Devices, IoT Devices |
| RAM Memory Installed | 4 MB |
| Warranty Description | 1 |
| Wireless Compability | Infrared |
| RAM Memory Technology | SRAM |
| Connectivity Technology | Wi-Fi |
| Memory Storage Capacity | 4 MB |
